Compact Tube In Tube Heat Exchanger GY-0060C for and Refrigerant Pump with Copper Tubes

Name: Compact Tube In Tube Heat Exchanger GY0060C for and Refrigerant Pump with Copper Tubes
Brand: Gimleo
Price: 1 USD

Brand Name : Gimleo

Model Number : GY-0060C

Certification : RoHS

Place of Origin : Guangdong, China

MOQ : 10pcs

Price : negotiable

Payment Terms : T/T, L/C, D/A, D/P, MoneyGram, Western Union

Supply Ability : 600 Pieces per day

Delivery Time : 15 days

Packaging Details : plywood case

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Printing Shops, Construction works , Energy & Mining

Structure : Tube Heat Exchanger, Trombone coaxial

Liquid Flow Rate : 1 m³/h

Maximum Working Pressure : 5.0MPa

Weight : 15 KG

Product Name : Coaxial Heat Exchanger

Tube material : copper tube

Shell material : stainless steel copper tube

Used as : Condenser,Evaporator

Water connection : 1 inch

Heat Capacity : 15.4 kw

Water Flow : 3.4 m³/h

Core Components : Pump

Contact Now

Compact Tube In Tube Heat Exchanger GY-0060C for and Refrigerant Pump with Copper Tubes

Products Description

Product name	Coaxial Heat Exchanger
Type	copper tube in steel tube
Model number	GC-0060C
Heating capacity	6kw
Water flow	1 m³/h
Use as	Condenser,Evaporator

Series Products

Product Introduction :

Coaxial heat exchanger is a recuperative heat exchanger. It consists of one inner twisted tube and one outer tube.Inner tube is separated the two media. Enable to heat exchange by using the common wall surface. Generally, the shell pass is for water, and the tube pass is for the air. It used a manner of countercurrent, which can be improved the effect of the heat transfer.

Its advantages: pressure proof, quake proof, Deformation proof, dirty proof,oil returning smoothly, safe and high-quality,leak proof, convenient,reasonable price,well applied into heat pump system.

Product Features :

• Low water quality requirements.A strong turbulent flow will be formed,and the water side is not easy to block the water side.
• Due to its structure,the product has good oil return characteristics.
• Heating and cooling capacity performance is relatively balanced.

• According to different application scenarios,different heat exchange tubes can be selected.

Product material and structure :

Tube material and structure can be customizable.

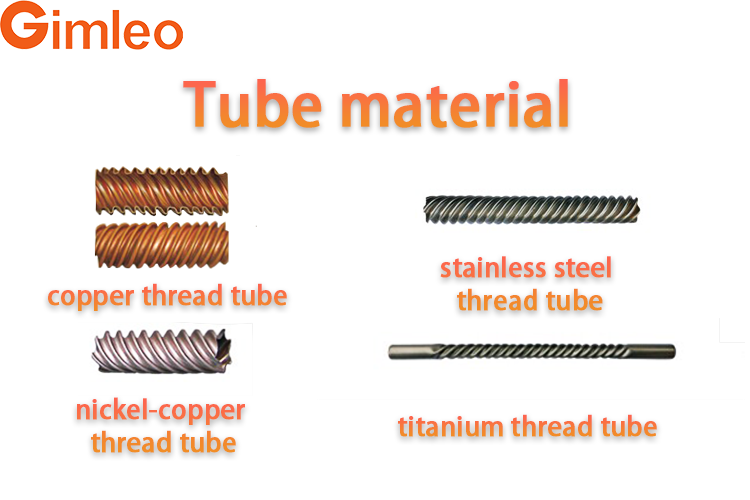

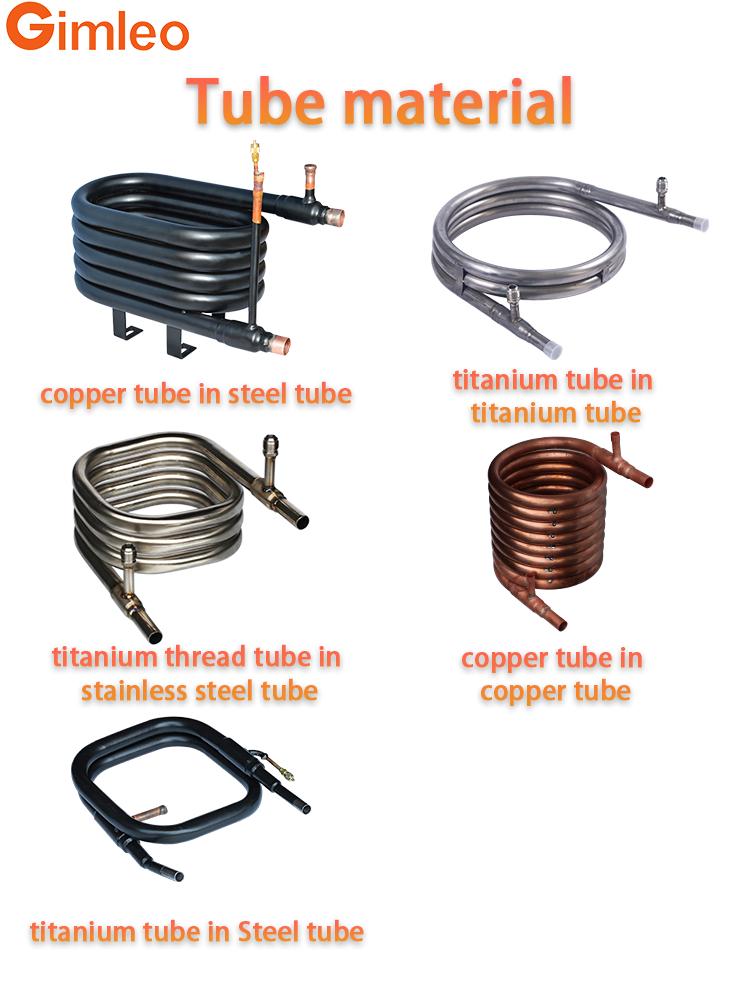

Optional tube material	pure copper tube	stainless steel tube	titanium tube	nickel-copper tube
Optional tube structure	Round coaxial	Trombone coaxial	Rectangle coaxial

Details Images

Product Application
